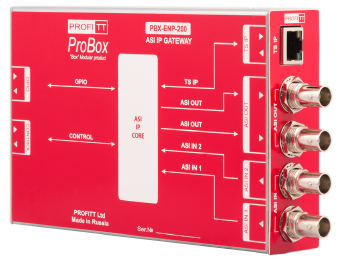

PBX-ENP-200
PROBOX family two-channel TSoIP-DVB-ASI gateway
PRODUCT OVERVIEW
PBX-ENP-200 provides a reliable solution for delivering video content over IP networks. Two independent ASI-IP and IP-ASI conversion. Two Ethernet ports (IP transport, configuration and monitoring) and input/output ASI interfaces.
Dedicated Ethernet port allows IP transmission with low jitter. Advanced jitter compensation algorithm to prevent packet loss due to late arrival.
Unicast and Multicast IP addressing allow for maximum network flexibllity.
Device provide web interface for ease of remote configuration and monitoring. lt is an ideal solution for integrating and bridging DVB-ASI interfaces over IP networks.
- Independent ASI-IP and IP-ASI converters in a single unit
- Low jitter IP transmission
- Supports IP encapsulation 2D FEC according to SMPTE 2022-1/2
- Jitter compensation and packet recovery algorithm
- Multicast support
APPLICATIONS
- Tunneling ASI between remote locations
- ASI distribution to transmitters
- ASI delivery to Content Delivery Network
TECH SPECIFICATIONS
- DVB-ASI input and output
- TSoIP encapsulation over UDP, RTP (SMPTE-2022)
- Ethernet 100BaseTX and 1000BaseTX
DVB-ASI -> TSoIP converter
- Two DVB-ASI inputs as source
- Conversion latency 10ms
- Input bitrate 0..213 MBit/s
IP -> DVB-ASI converter
- Two DVB-ASI outputs
- TSoIP input 100/1000 MBit/s
- Jitter tolerance up to 120ms
Management interface
- Web interface
- 100/1000BaseTX Ethernet
GPIO
- GPI relays up to 10W, 36V
- DHS-26M socket
Dimensions
- 105x160x34mm
ORDERING CODES
| PBX-ENP-200 | Two-channel TSoIP-DVB-ASI gateway |
