“CamBackPro” Camera Mountable Fiber Optic Transmission System (up to 12G SDI)

documents

"CamBackPro" Redudancy Power Supply System

PRODUCT OVERVIEW

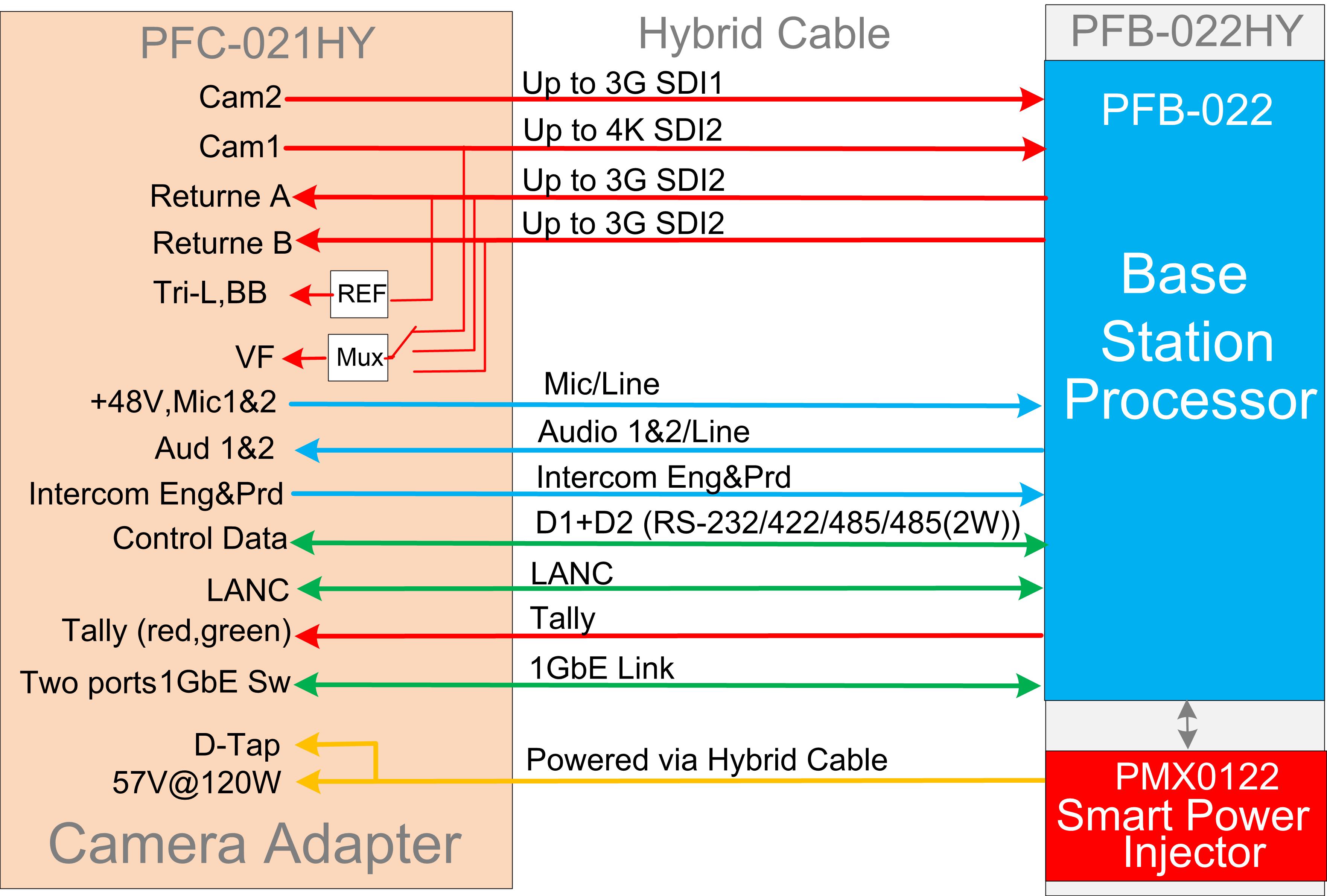

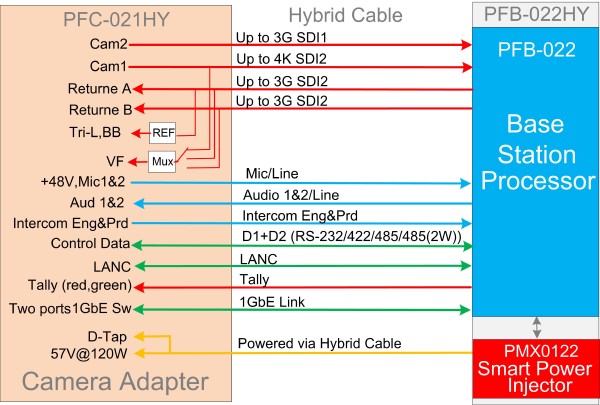

The “CamBackPro” PFC-021HY / PFB-022HY kit can operate with SMPTE hybrid fiber cable to deliver all of your signals and the power to run your cameras and accessories.

PFC-021 / PFB-022 kit operates via a dual-fiber (single fiber by request) optical cable. Requires local power at the camera side (PSU or battery).

Features and Application

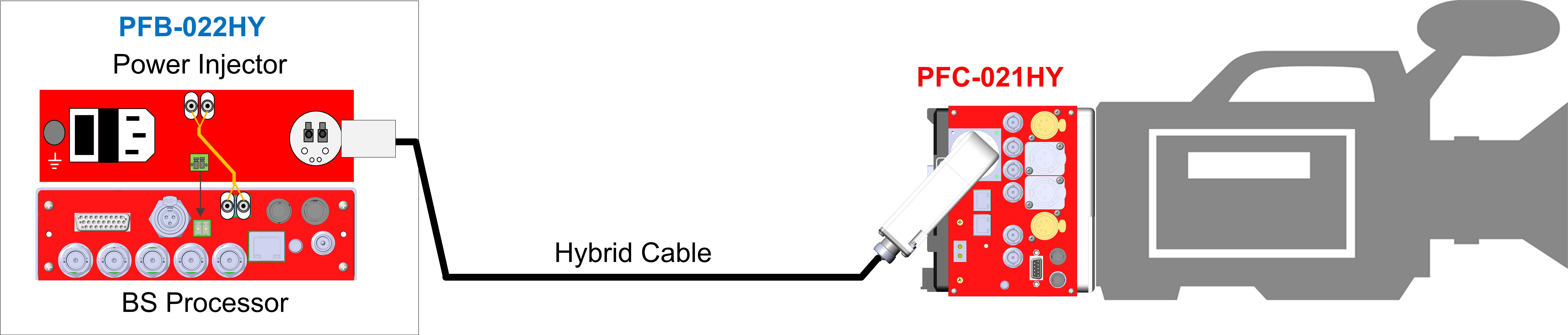

Hybrid Fiber Cable-Camera Powered by Base Station

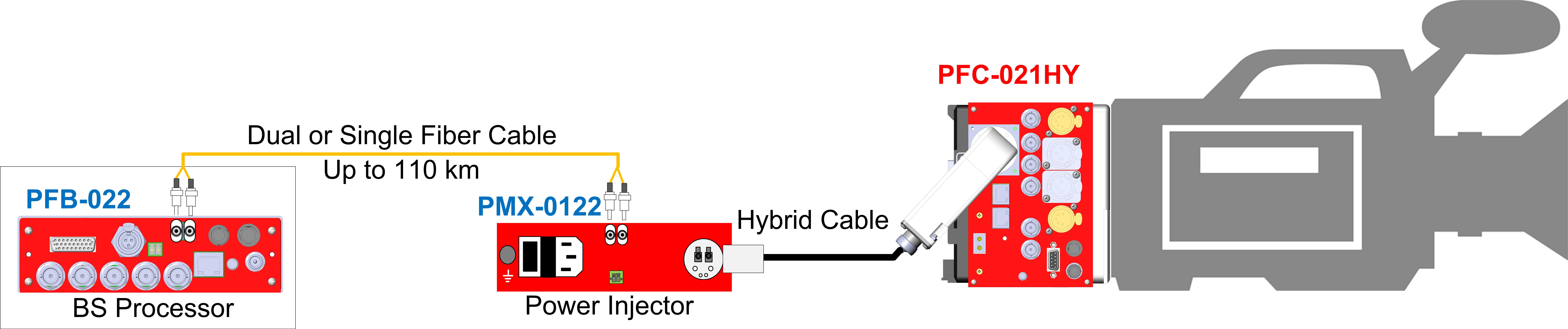

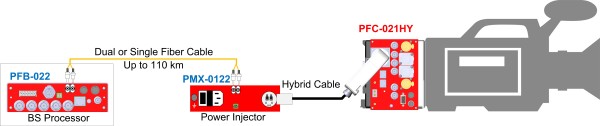

Hybrid Fiber Cable-Camera Powered by Smart Power Injector away from Base Station

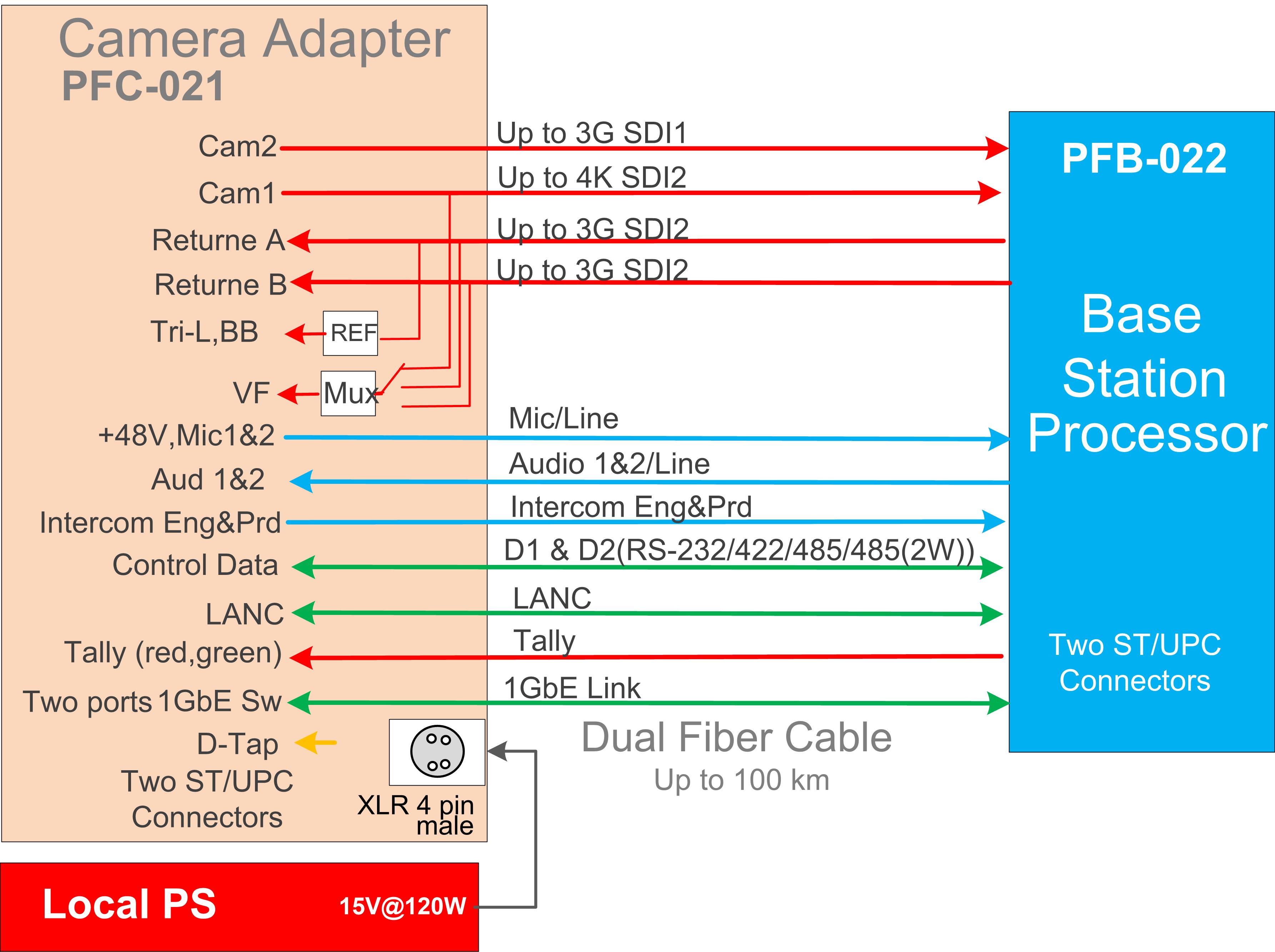

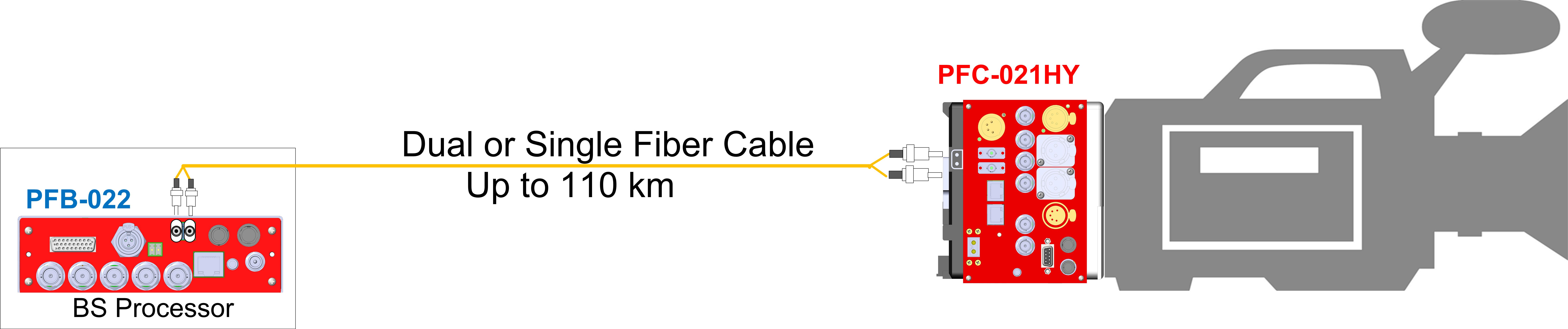

Dual(Single)-Fiber Cable.2 (1 by request) ST connectors. Camera Powered Locally

TECH SPECIFICATIONS

Video

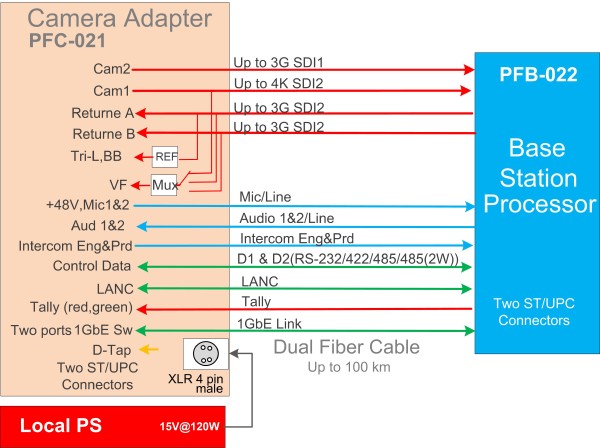

  • Number of Channel (Cam to Base): 2, SDI 1 In (up to 4K), SDI 2 In (up to 3G)
  • Number of Channel (Base to Cam ): 2, Return A/B (up to 3G-SDI)
  • VF Out (Camera Unit): up to 4K-SDI, BNC
  • Ref Out (Camera Unit): sync to camera, BB or Tri-Level, BNC

Audio

  • Number of Channel (Cam to Base): 2 Analog, Mic (Phantom Powered) / Line
  • Number of Channel (Base to Cam): 2 Analog, Line Level
  • Connector(Camera Unit): XLR 3pin female (Mic), DB-9 female (Return Audio)
  • Connector(Base Unit): DHS-26 female
  • Intercome: Mic input, Phone output, XLR 5pin female

Camera control

  • Number of Channel (bidirectional): 3
  • Data1: By menu selectable RS-232/422/485,485(2W), Hirose (8pin-Sony)
  • Data2: By menu selectable RS-232/422/485,485(2W), Hirose (10pin-Panasonic)
  • LANC: Jack 3.5mm

Tally

  • Number of channel (Base to Cam): 2
  • Input Type: Short to GND or TTL Low
  • Output Type: Relay contact closure
  • +12V output (Camera Unit)
  • Connector: Mini XLR 5pin female

1 GbE, 100/1000 Ethernet

  • Number of Ports (Camera Unit): 2, RJ-45
  • Number of Ports (Base Unit): 1, RJ-45

VF remote control (Camera Unit )

  • Exsecution: Short to GND
  • Connector: Mini XLR 5pin female

Electro-Optical

  • Operating Wavelengths: 1270..1610nm
  • Optical Budget: 18 dB (3G models), 10 dB (4K models)
  • Available optical connectors: opticalDUO, LEMO, ST, LC

Power

Base Unit

  • Power Input: 90-250 VAC, 50-60Hz
  • Power Consumption: 160W max

Camera Unit

  • Remote Power: Hybrid Fiber Connector, 57 VDC
  • Local Power: Battery Mount (V-Mount or Golden Mount), 11-17 VDC
  • Power Consumption: 8W max
  • Total Power from Camera Unit for Camera & Accessories: 12V, 110W max
  • Auxillary Power Output: D-Tap, +12V, 3A max

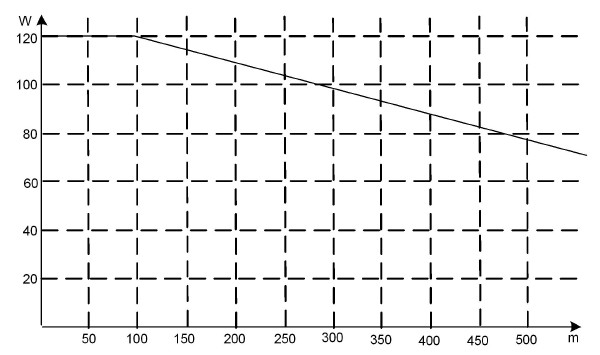

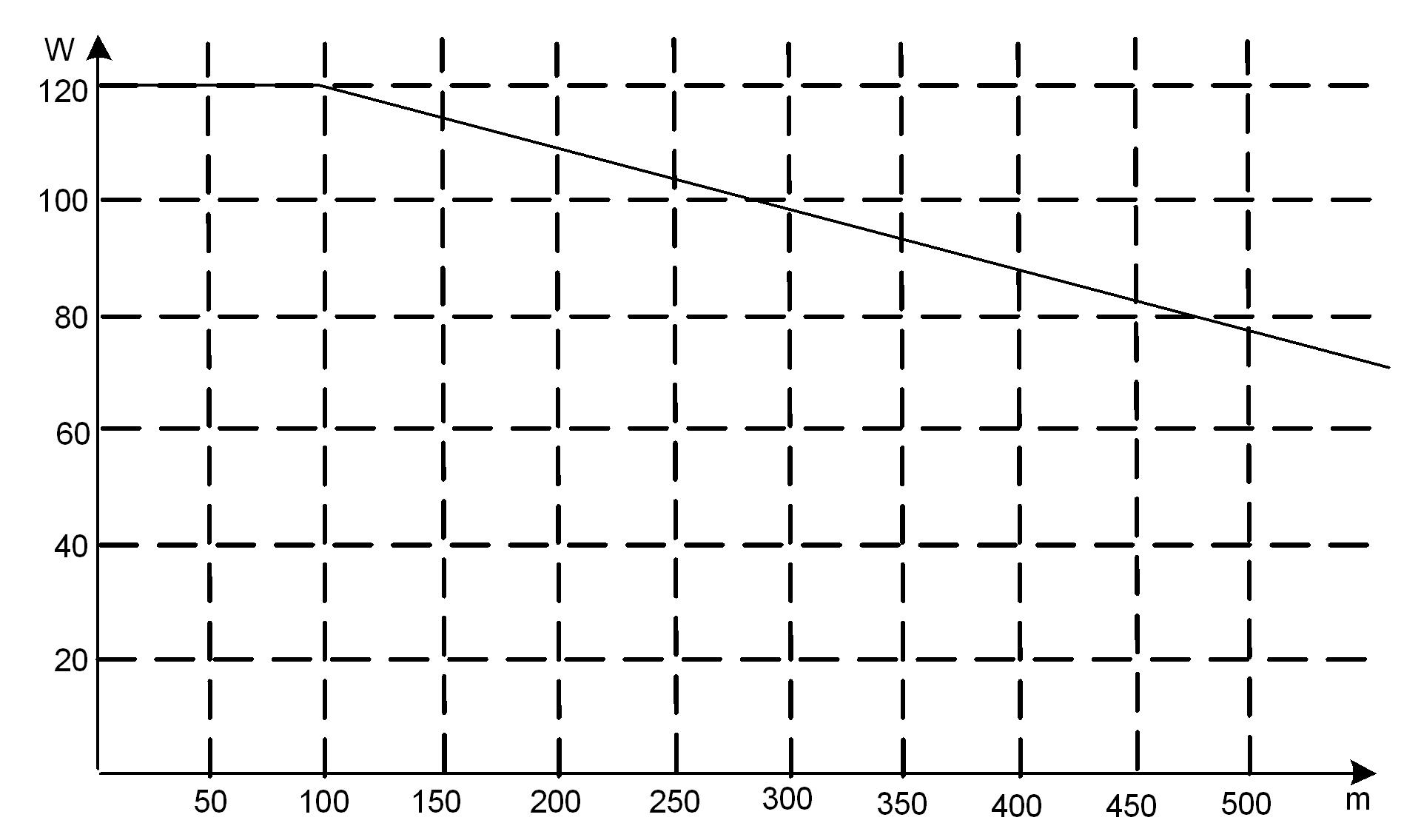

  • Power vs. Distance

Local Control Panel

Camera Unit

  • Menu control Button: Up, Down, Undo, Home, OK
  • Intercom Push-to-Talk Buttons: Eng, Prd with LED indicator
  • Volume Control: +/- Eng, +/- Prd with LED indicator
  • Mic Gain Control: +/- with LED indicator
  • Side Tone Mode Button: Side Tone with LED indicator
  • VF Select Button: VF with LED indicator
  • Tally LED indicator

Base Unit

  • Menu control Buttons: Up, Down, Undo, Home, OK
  • LED indicators: Link, SDI Camera Present / SDI Return Present / Data 1, 2, LANC Present

Case dimensions

  • Camera Unit: PFC-021, 145 x 100 x 100 mm
  • Base Unit: PFB-022, 146 x 195 x 42 mm (1/3 1U) and PMX-0122 (if Hybrid Cable Used) 146 x 195 x 42 mm (1/3 1U)

ORDERING CODES

Hybrid Cable, LEMO or OpticonDuo connector (by request)

Kit Compatible Pair
Camera PFC-021HY(-12G) SDI (4K SDI)
Base PFB-022HY(-12G)

Dual-Fiber Cable, two ST connectors

Kit Compatible Pair Distance
Camera PFC-021-15 (23) SDI 70 (110) km
Base PFB-022-15 (23)
Camera PFC-021-12G 4K SDI 35 km
Base PFB-022-12G
