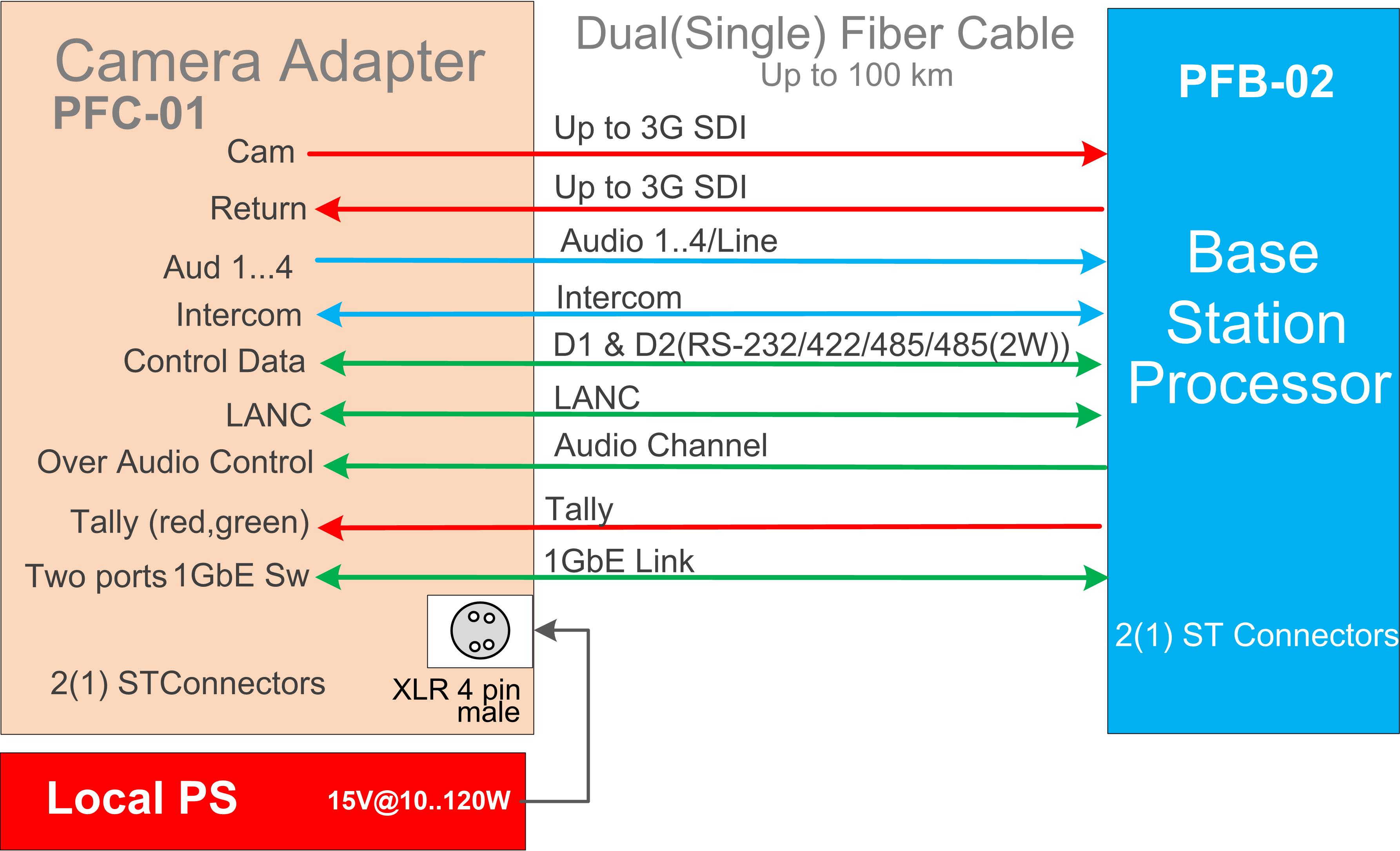

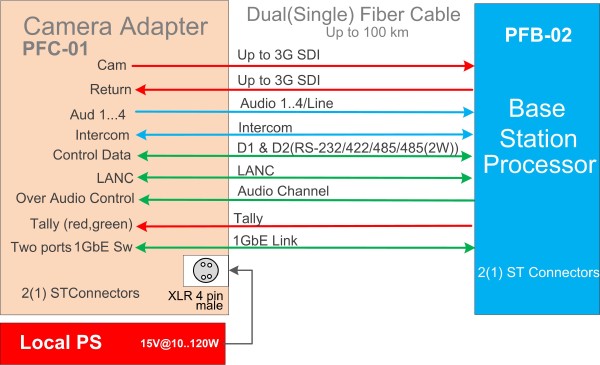

Video

• Number of Channel (Cam to Base): 1, BNC, up to 3G
• Number of Channel (Base to Cam): 1, Return, BNC, up to 3G-SDI

Audio

• Number of Channel (Cam to Base): 4 Analog, Line
• Connector(Camera Unit): DB-15, female
• Connector(Base Unit): DB-15, female
• Intercome: Mic input, Phone output, XLR 5pin female

Camera control

• Number of Channel (bidirectional): 3
• Data1: Selectable RS-232/422/485,485(2W), DHS-26 (female)
• Data2: Selectable RS-232/422/485,485(2W), DHS-26 (female)
• LANC: Jack 3.5mm
• Audio (Base to Cam), Line

Tally

• Number of channel (Base to Cam): 2
• Input Type: Short to GND or TTL Low
• Output Type: Relay contact closure
• +12V output (Camera Unit)
• Connector: DHS-26 (female)

1 GbE, 100/1000 Ethernet

• Number of Ports (Camera Unit): 2, RJ-45
• Number of Ports (Base Unit): 2, RJ-45

Electro-Optical

• Operating Wavelengths : 1270..1610nm
• Optical Budget: 15dB or 23dB (by request)
• Available optical connectors: ST, LC

Power

Base Unit

• Power Input: 12..17 VDC, XLR 4 Pin, Male
• Power Consumption: 5W max

Camera Unit

• Power Input: 12..17 VDC, XLR 4 Pin, Male
• Local Power: Battery Mount (V-Mount or Golden Mount), 11-17 VDC
• Power Consumption: 5W max

Local Control Panel

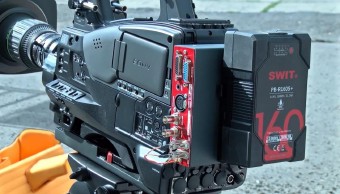

Camera Unit

• Intercom Push-to-Talk Button: Mic Enable with LED indicator
• Phone Volume Control
• Mic Gain Control
• SDI and 1GbE Links Status with LED indicators
• Rx Power Five Segments LED indicators
• LED indicators: SDI Camera Present / Audio 12, 34 Present / Data 1,2 Present

Base Unit

• SDI and 1GbE Links Status with LED indicators
• Rx Power Five Segments LED indicators
• LED indicators: SDI Return Present / Audio 12, 34 Present / Data 1,2, Present

Case dimensions

• Camera Unit: 146 x 195 x 42 mm
• Base Unit: 146 x 195 x 42 mm
