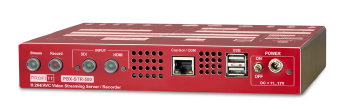

PBX-STR-500
Compact PROBOX Family SDI and HDMI H.264 streamer and recorder designed for broadcast applications.
PRODUCT OVERVIEW
The module can stream the live event and record its master quality version for post-event editing.
Dedicated TSoIP port provide zero-jitter output for unicast or multicast.
Two channels of audio are deembedded from SDI/HDMI inputs. PBX-STR-500 also have line audio and microphone inputs. User can select either source or external microphone for the program audio. Integrated cross converter provide inputs to be converter to desired standard.
- Compatible with popular CDNs
- High quality local recording
- Integrated cross converter
- Support streaming formats UDP, RTP, RTMP, HLS, SRT
- Up to 3G-SDI and HDMI inputs
- Build-in luma key for channel branding
- Microphone or external audio overlay on the program audio
- Program HDMI output
- DVB-ASI output
APPLICATIONS
- Live streaming using RTMP
- Streaming to CDN
- Multicast feed for IP contribution
- Backup recording
TECH SPECIFICATIONS
Video inputs/outputs
- 1 x BNC SDI input, 1 x BNC SDI output pass through
- 1 x HDMI 1.4a input, 1 x HDMI 1.4a monitor output
- 1 x BNC ASI output
Video input formats
- 1080p 25/29/50/59
- 1080i 50/59
- 720p 25/29/50/59
- 525i 59, 625i 50
Video Encoder
- H.264 according to MPEG-4 AVC Part 10; ISO/IEC 14496-10
- High, Main and Baseline profile support, level 4.2, 4.0
- Bit Rate: up to 16 Mbps
Audio Encoder
- MPEG-4 AAC LC, stereo
- MPEG-1 Layer II, stereo
- Bit Rate: 32 kbps to 256 kbps
Audio I/O
- 2 x 6.35 mm jack balanced audio
- 1 x 3.5 mm stereo jack
- 2 x 3.5 mm jack microphone input
Dimensions
- 210x160x34mm
ORDERING CODES
| PBX-STR-500 | H.264 Streamer and recorder |
| PBX-STR-500EN | H.264 Encoder with IP and ASI output |
