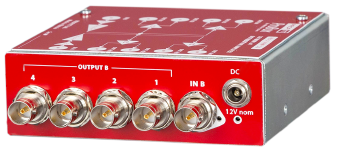

PBX-##AMP Series
Series a miniature SDI reclocking distribution amplifiers
PRODUCT OVERVIEW
PBX-##AMP Series is a miniature SDI reclocking distribution amplifier. Supports 12G-SDI (PBX-##AMP-12G index) for 4K/UltraHD single link workflows, the format agnostic device features up to eight separately buffered SDI outputs identical to the recovered input. It also offers automatic input detection, reclocking, cable equalization and LED signal detection indicator.
TECH SPECIFICATIONS
- Two, four, eight separately buffered outputs
- Single, dual, quad channels models
- Miniature size
- Cable equalization (1694 coax)
- 12 Gbps, 50m
- 6 Gbps, 100m
- 3 Gbps, 150m
- 1.5 Gbps, 190m
- 270 Mbps, 400m
- 12G/6G/3G/HD/SD-SDI input, auto sensing
- Passes all ancillary data
Connectors
- BNC
Power
- 9..17V DC adapter
- Power consumption 1.5W
Case dimensions
- 100 x 105 x 33.5 mm
ORDERING CODES
| PBX-114AMP(-12G) | 1x4 single channel |
| PBX-118AMP(-12G) | 1x8 single channel |
| PBX-214AMP(-12G) | 1x4 double channels |
| PBX-412AMP | 1x2 quad channels |
-12G index - 4K-SDI support
