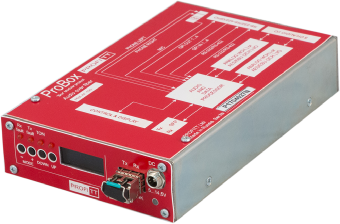

PBX-AF-100
PROBOX family optical converter for transporting audio, RS232/422/GPIO data and intercom.
PRODUCT OVERVIEW

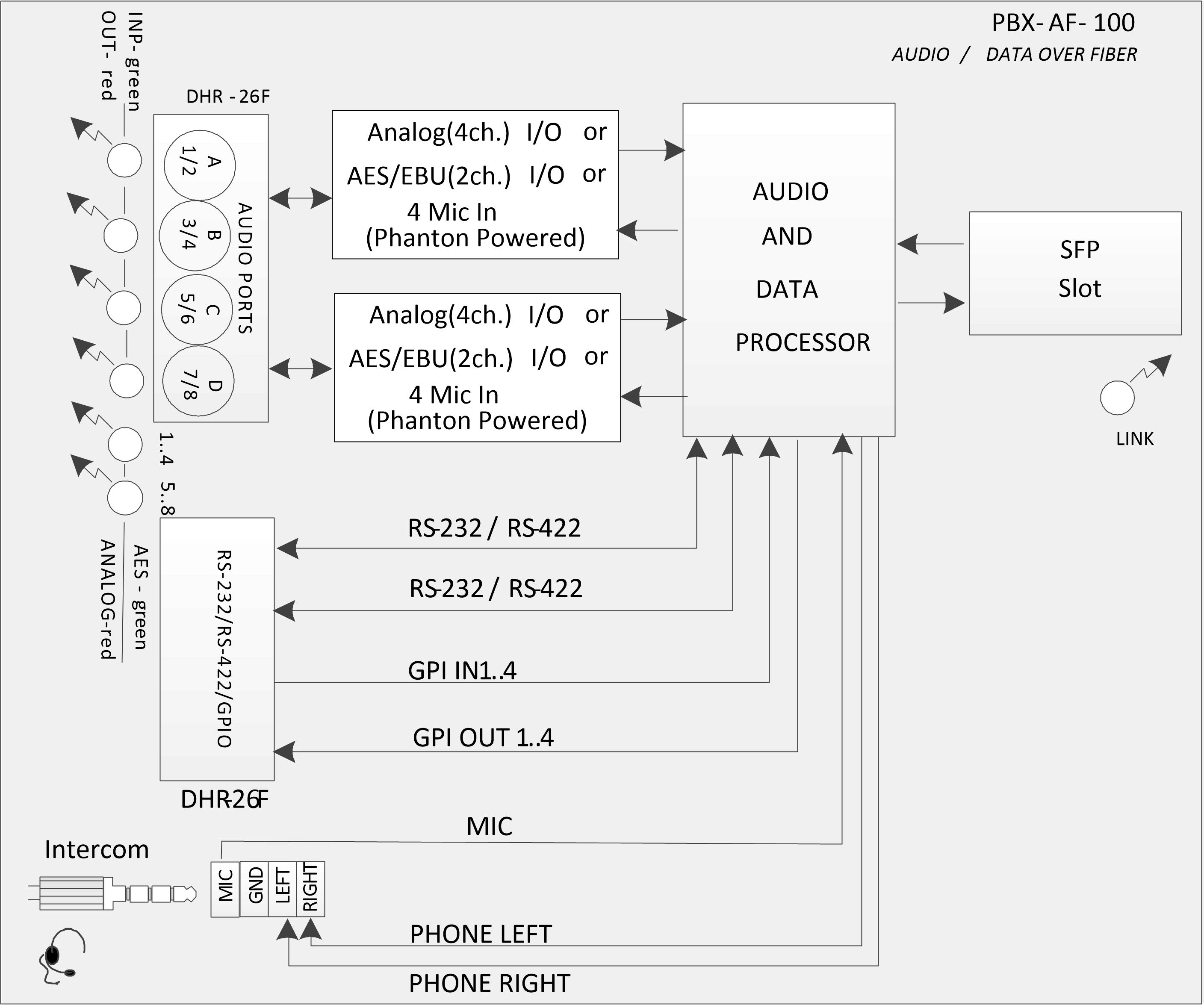

ProBox series PBX-AF-100 optical converters are intended for transporting of up to eight channels of audio (analog and/or AES), an InterCom bidirectional channel, two RS-232/422 data channels and GPIO commands over a single optical fiber. Data-only modifications available.
- Up to eight audio channels + RS232/422 data + GPIO over a single optical fiber
- Analog line, microphone(+48V phantom powered) and/or AES/EBU inputs/outputs (by request)
- Input/output autoconfiguration by the SFP type inserted: Rx, Tx, Rx+Tx
- Front panel controls: input/output gain, audio channel re-mapper, input signal invertion, selected audio pair headphone monitor
- InterCom channel with 3.5mm jack headphone+mic connector
- Two port RS-232/RS-422, 4 GPI, 4 GPO data
- Four-channel GPIO in each direction
- Input/Output optical power and wavelength monitoring
- 1310nm, 1550nm, CWDM or DWDM wavelength capability
- Up to 140 km transmission distance
- Compact cases
TECH SPECIFICATIONS
Audio
Analog Inputs
- Up to 8 channels (four stereo pairs), balanced
- Inputs type: line or microphone (+48V phantom powered)
Line input mode
- 0dBFS input level: +18dB
- THD+noise: less than 0.008 %
- Frequency response: +/-0.15dB from 20Hz to 20kHz
Microphone mode
- Gain range: +24dBu..+70dBu
- Phanton 48V: available for each microphone individually
AES/EBU Inputs
- Up to 4 channels (four stereo pairs), balanced, 110 Ohm
- Equalization : Automatic to 200m with Belden 1800B @ 48kHz
Analog Outputs
- 0dBFS output level: +18dB
- Up to 8 channels (four stereo), balanced, line level
- THD+noise: less than 0.008 %
AES/EBU Outputs
- Up to 4 channels (four stereo), balanced, 3V@110 Ohm
Perfomance
- Sampling rate: 48kHz, 24 bits
- Frequency response: +/-0.15dB from 20Hz to 20kHz
- +/- 6dB input and output gain adjustment
Intercom
Headphone Output
- Minimum permissible load impedance: 16 Ohm
- Volume: -57dB..+6dB
Microphone input
- Electret microphone, unbalanced
- Input impedance: more than 1.6 kOhm
Fiber optic
- Single mode fiber
- Distance: up to 80km
Data
- Two port either RS-232 or RS-422 (per port user-selectable)
- GPI number: 4
- GPI execution: GND
- GPO number: 4
- GPO: open collector, 16mA max load
Connectors
- DHR-26F: audio, GPIO
- LC/UPC: optic
- Intercom: 3.5mm mini Jack, four-contact
Power
- 9..17V DC adapter
- Power consumption 5W
Case dimensions
- 160 x 105 x 33.5 mm
ORDERING CODES
| Link | Compatible pair | Audio I/O | Distance, km |
|---|---|---|---|
| 1A | PBX-AF-100-4 (A, M or E)-(CW##)-T1F-20(80) | 4 In | 20(80) |
| 1B | PBX-AF-100-4 (A or E)-R1F | 4 Out | |
| 2A | PBX-AF-100-8 (AA,MM,MA,AE,ME or EE)-(CW##)-T1F-20(80) | 8 In | 20(80) |
| 2B | PBX-AF-100-8 (AA, AE or EE)-R1F | 8 Out |
| Link | Compatible pair | Audio I/O | Distance, km |
|---|---|---|---|
| 3A | PBX-AF-100-8(AA,MA,AE,ME,EA or EE)-TR1F-20(80) | 4 In/ 4 Out | 20(80) |
| 3B | PBX-AF-100-8(AA,MA,AE,ME,EA or EE)-TR1F-20(80) | 4 In/ 4 Out | |
| 4A | PBX-AF-100-8(AA,MA,AE,ME,EA or EE)-(CW##)-TR2F-20(80) | 4 In/ 4 Out | 20(80) |
| 4B | PBX-AF-100-8(AA,MA,AE,ME,EA or EE)-(CW##)-TR2F-20(80) | 4 In/ 4 Out |
A: 4 channel analog line audio
M: 4 ch. microphone/ line level audio
E: 2 ch. AES/EBU audio (2 stereo pair)
T: transmitter
R: receiver
CW##: one of 1270nm..1610nm CWDM wavelength
1F: single fiber
2F: two fibers
