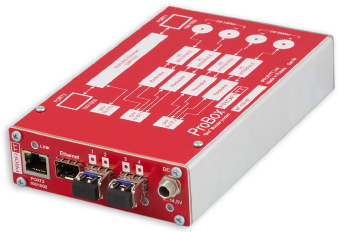

PBX-MF-150(-12G)
PROBOX family multichannel optical converter for transporting up to 4К SDI, ASI, 1GbE
PRODUCT OVERVIEW
Unit supports four (two) independent up to 4K-SDI(-12G index) converters. Four types of modules allow for flexible configuration depending on the customers demands. Automatic Rx or Tx per channel configuration based on the type of SFP installed by customer. Device includes optional Gigabit Ethernet fiber media converter.

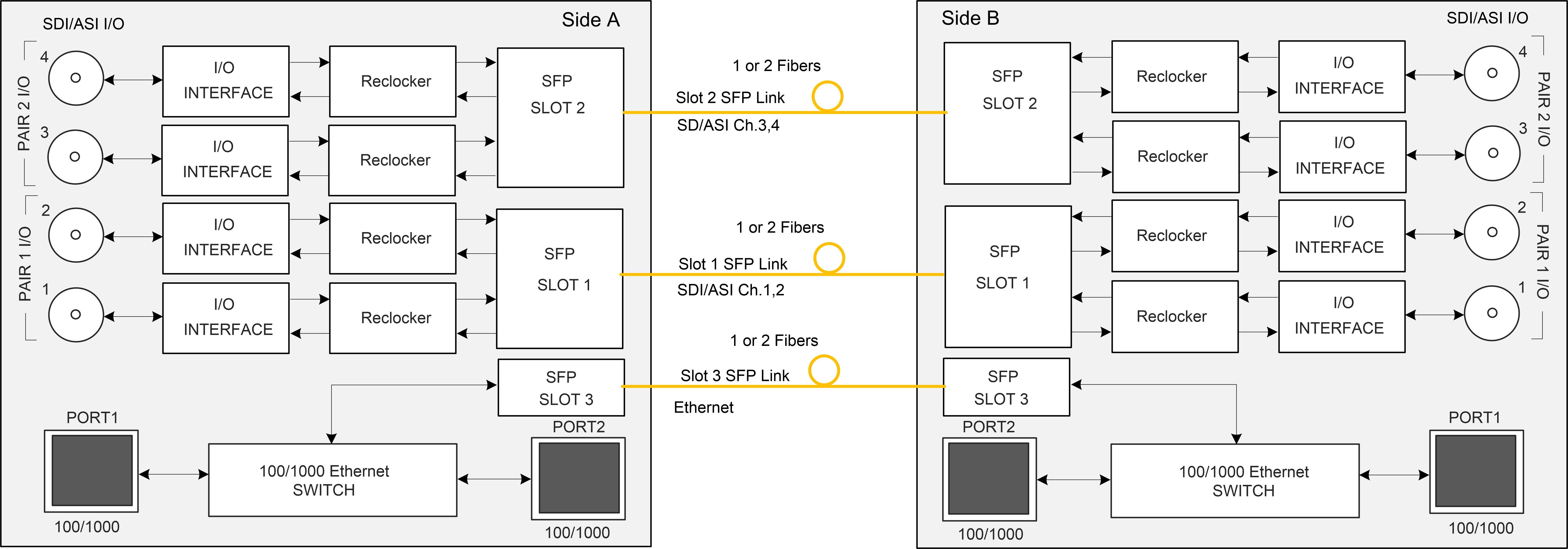

- Rx or Tx auto configuration based on SFP type
- Reclocked video input and output
- Signal present indicator.
- BNC I/O mode indicator
- Optional two port 1GbE switch with fiber media converter
- CWDM and DWDM wavelength supported
- Front panel status indicator
TECH SPECIFICATIONS
Interfaces
- BNC video input/output with I/O mode indicator
- Cable equalization (1694 coax)
- 12 Gbps, 50m
- 6 Gbps, 100m
- 3 Gbps, 150m
- 1.5 Gbps, 190m
- 270 Mbps, 400m
- 12G/6G/3G/HD/SD-SDI input, auto sensing
- Single fiber and two fiber Ethernet SFP
- Two-ports 1GbE switch
Video SFP
- Up to 120 km link distance
- CWDM and DWDM support
- LC/PC connector
- Error-free pathological support
Ethernet SFP
- Two fibers (1310 nm and 1550 nm)
- Single fiber (1330/1550 nm or 1490/1550 nm)
- 100BaseTX, 1000BaseTX
Power
- 5..17V DC adapter
- Power consumption 4.5W
Case dimensions
- 100 x 105 x 33.5 mm
ORDERING CODES
| 4 ch. | Compatible pair | SDI/ASI func. | Distance, km |
| 1A | PBX-MF-150-4-(E)-(12G)-4T-20(80) | 4 Tx | 20(80) |
| 1B | PBX-MF-150-4-(E)-(12G)-4R-20(80) | 4 RX | 20(80) |
| 2A | PBX-MF-150-4-(E)-(12G)-3T1R-20(80) | 3 Tx, 1 Rx | 20(80) |
| 2B | PBX-MF-150-4-(E)-(12G)-3R1T-20(80) | 3 Rx, 1 Tx | 20(80) |
| 3A | PBX-MF-150-4-(E)-(12G)-2T2R-20(80) | 2 Tx, 2 Rx | 20(80) |
| 3B | PBX-MF-150-4-(E)-(12G)-2R2T-20(80) | 2 Rx, 2 Tx | 20(80) |
| 2 ch. | Compatible pair | SDI/ASI func. | Distance, km |
| 1A | PBX-MF-150-2-(E)-(12G)-2T-20(80) | 2 Tx | 20(80) |
| 1B | PBX-MF-150-2-(E)-(12G)-2R-20(80) | 2 RX | 20(80) |
| 2A | PBX-MF-150-2-(E)-(12G)-1T1R-20(80) | 1 Tx, 1 Rx | 20(80) |
| 2B | PBX-MF-150-2-(E)-(12G)-1R1T-20(80) | 1 Rx, 1 Tx | 20(80) |
E : 1GbE link option. Built-in two-ports switch
12G : support 4K SDI
- CWDM wavelenghts available (by request)
- Bi-directional single fiber transceivers available (by request)
