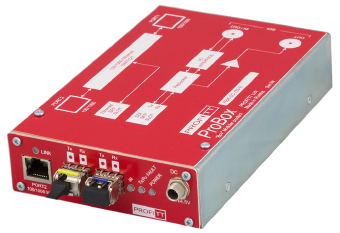

PBX-SC-155(-12G)
PROBOX family single channel optical converter for transporting 4К, ЗG-SDI, HD-SDI, SD-SDI, ASI, 1GbE.
PRODUCT OVERVIEW

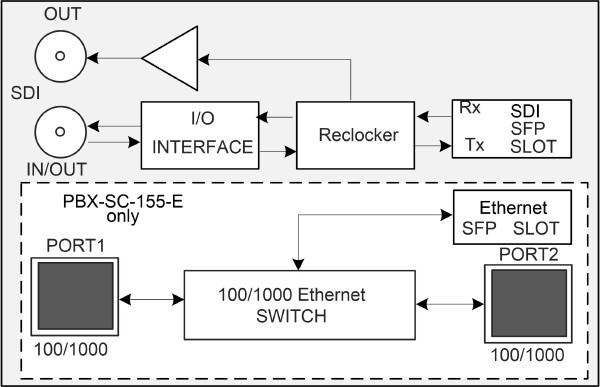

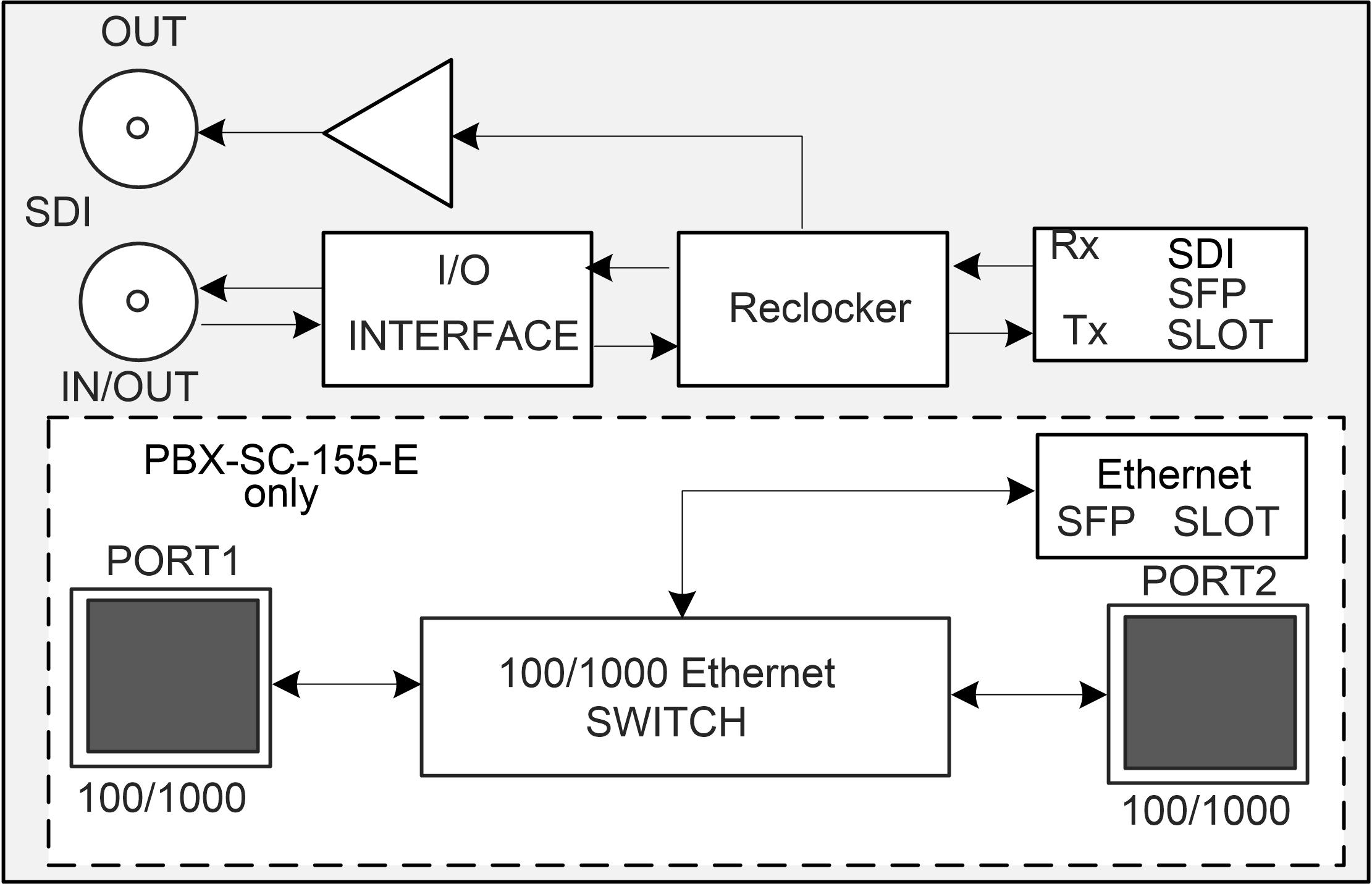

Unit provides a single channel up to 4K-SDI(-12G index) a fiber optic converter. Automatic Rx or Tx configuration based on the type of SFP installed by customer. Signal present indicator. Wide range of SFP wavelengths available. Device includes optional Gigabit Ethernet fiber media converter.
- Rx or Tx auto configuration based on SFP type
- Reclocked video input and output
- Bypass SDI output for Tx, dual SDI output for Rx
- BNC I/O mode indicator
- Optional two-ports 1GbE switch with fiber media converter
- CWDM and DWDM wavelength supported
- Front panel status indicator
TECH SPECIFICATIONS
Interfaces
- BNC video input/output with I/O mode indicator
- Cable equalization (1694 coax)
- 12 Gbps, 50m
- 6 Gbps, 100m
- 3 Gbps, 150m
- 1.5 Gbps, 190m
- 270 Mbps, 400m
- 12G/6G/3G/HD/SD-SDI input, auto sensing
- Single fiber and two fiber Ethernet SFP
- Two-ports 1GbE switch
Video SFP
- Up to 80 km link distance
- CWDM and DWDM support
- LC/PC connector
- Error-free pathological support
Ethernet SFP
- Two fibers (1310 nm and 1550 nm)
- Single fiber (1330/1550 nm or 1490/1550 nm)
- 100BaseTX, 1000BaseTX
Power
- 5..17V DC adapter
- Power consumption 2.0W max
Case dimensions
- 100 x 105 x 33.5 mm
ORDERING CODES
| SDI only | Compatible pair | Distance,km | Fibers |
| SDI | PBX-SC-155T-20(80) | 20(80) | 1 |
| PBX-SC-155R | |||
| SDI | PBX-SC-155T-CW## | 80 | 1 |
| PBX-SC-155R | |||
| 4K SDI | PBX-SC-155T-12G | 36 | 1 |
| PBX-SC-155R-12G | |||
| 4K SDI | PBX-SC-155T-CW##-12G | 40 | 1 |
| PBX-SC-155R -12G |
T..Transmitter, R..Receiver
| Distance, | Fibers, | ||
| Link | Compatible pair | km | total |
| SDI & | xxx-E2F-20(80) | 20(80) | 3 |
| 1GbE | xxx-E2F-20(80) | ||
| SDI & | xxx-E2F-CW##-20(80) | 20(80) | 3 |
| 1GbE | xxx-E2F-CW##-20(80) | ||
| SDI & | xxx-E1F-20(80) | 20(80) | 2 |
| 1GbE | xxx-E1F-20(80) |
xxx: SDI only compatible pair ordering code
| 1GbE Distance, | Fibers | ||
| Link | Compatible pair | km | |
| 1GbE | PBX-SC-155EH-E2F-20(80) | 20(80) | 2 |
| PBX-SC-155EH-E2F-20(80) | |||
| 1GbE | PBX-SC-155EH-E2F-CW##-20(80) | 20(80) | 2 |
| PBX-SC-155EH-E2F-CW##-20(80) | |||
| 1GbE | PBX-SC-155EH-E1F-20(80) | 20(80) | 1 |
| PBX-SC-155EH-E1F-20(80) |
CW##: one of 1270nm…1610nm CWDM wavelength
