PBX-xxE(-12G)
PROBOX family optical converter for transporting up to 8 channels of 4K/3G/HD/ SD-SDI, ASI and 1GbE over single fiber.
PRODUCT OVERVIEW

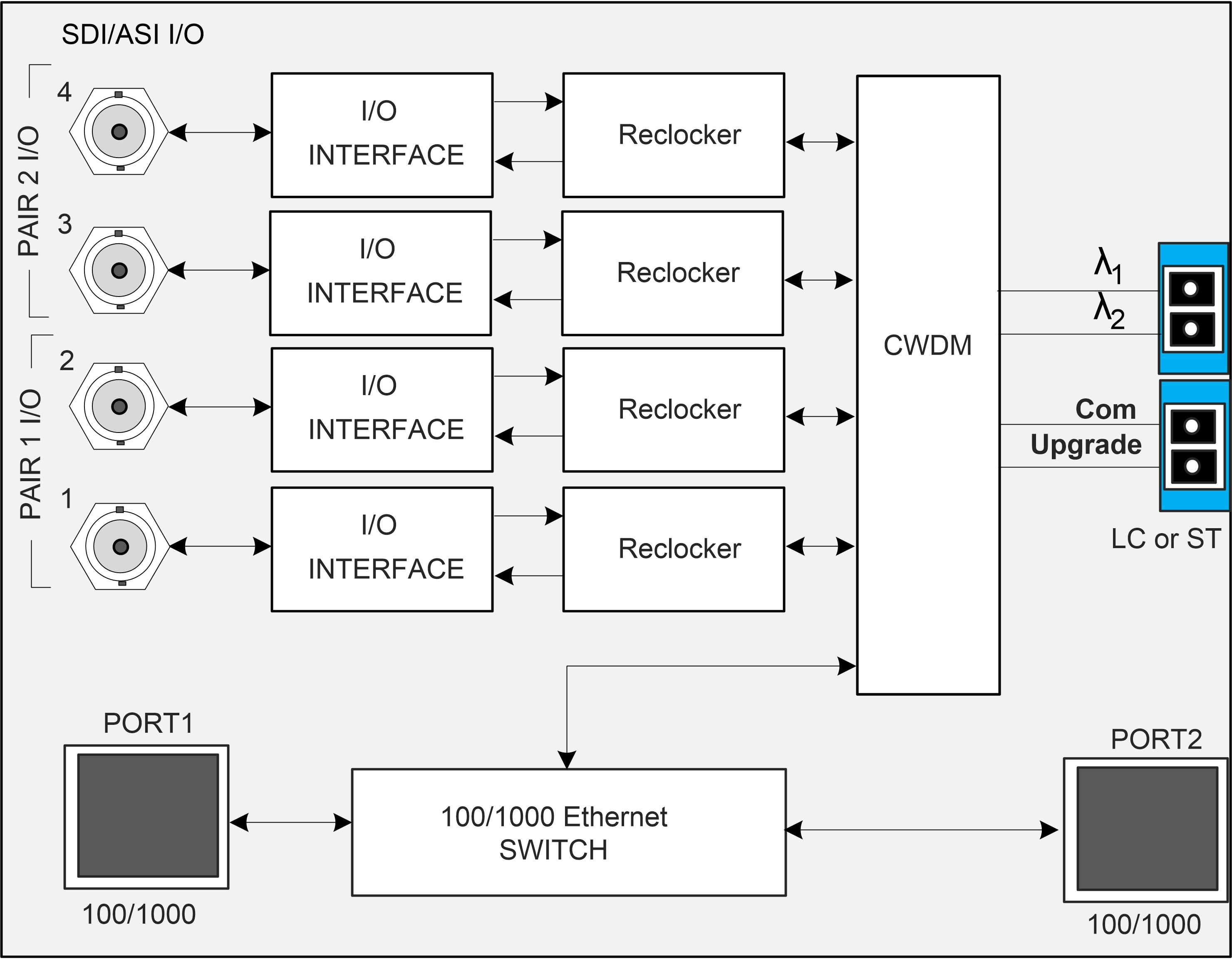

ProBox PBX-xxE(-12G) series of optical converters for transporting up to 4 channels of 4K/3G/HD/SD-SDI, ASI and 100/1000 Ethernet over single fiber.
- Any combination of Tx, Rx is available in single box (according to the ordering codes )
- PBX-xxE-12G models for 4K video
- Reclocked video input and output
- Front panel signal present indicator
- BNC I/O mode LED indicator
- Optional two-ports 1GbE switch with fiber media converter
- Optical upgrade port for cascading
- Two optical ports (1590nm,1610nm or 1430nm,1450nm(L-index)) for external links
- Integrated CWDM multiplexer (1470..1610nm or 1270..1450nm (L-index))
- Miniature size
TECH SPECIFICATIONS
Video
- BNC video input/output with I/O mode indicator
- Reclocked video input and output
- Cable equalization (1694 coax)
- 12 Gbps, 50m
- 6 Gbps, 100m
- 3 Gbps, 150m
- 1.5 Gbps, 190m
- 270 Mbps, 400m
- 12G/6G/3G/HD/SD-SDI input, auto-sensing
- Passes all ancillary data
Optical
- Operating Wavelengths:
| Version. | Com | Upgrade | λ1 | λ2 |
| Default | 1470..1570nm | 1270..1450nm | 1590nm | 1610nm |
| L-index | 1270..1410nm | 1470..1610nm | 1430nm | 1450nm |
- Optical Budget: 18 dB (3G models), 10 dB (4K models)
- Distance (typ.): 80 km(3G), 40 km(4K)
- Available optical connectors: ST, LC
Ethernet
- 100BaseTx, 1000BaseTx
- Built-in two-ports switch
Connectors
- BNC video
- LC/UPC optic, (ST/UPC available )
- RJ-45, Ethernet
Power
- 9..17V DC adapter
- Power consumption 4.5W
Case dimensions
- 160 x 105 x 33.5 mm
ORDERING CODES
| 4 ch. | Compatible pair | SDI func. |
| 1A | PBX-4T1F-(E)-(12G)-(L) | 4 Tx |
| 1B | PBX-4R1F-(E)-(12G)-(L) | 4 RX |
| 2A | PBX-3T1R1F-(E)-(12G)-(L) | 3 Tx, 1 Rx |
| 2B | PBX-3R1T1F-(E)-(12G)-(L) | 3 Rx, 1 Tx |
| 3A | PBX-2T2R1F-(E)-(12G)-(L) | 2 Tx, 2 Rx |
| 3B | PBX-2R2T1F-(E)-(12G)-(L) | 2 Rx, 2 Tx |
| 4A | PBX-1T3R1F-(E)-(12G)-(L) | 1 Tx, 3 Rx |
| 4B | PBX-1R3T1F-(E)-(12G)-(L) | 1 Rx, 3 Tx |
| 2 ch. | Compatible pair | SDI func. |
| 1A | PBX-2T1F-(E)-(12G)-(L) | 2 Tx |
| 1B | PBX-2R1F-(E)-(12G)-(L) | 2 RX |
| 2A | PBX-1T1R1F-(E)-(12G)-(L) | 1 Tx, 1 Rx |
| 2B | PBX-1R1T1F-(E)-(12G)-(L) | 1 Rx, 1 Tx |
E: 1GbE link option. Built-in two-ports switch
12G: support 4K SDI

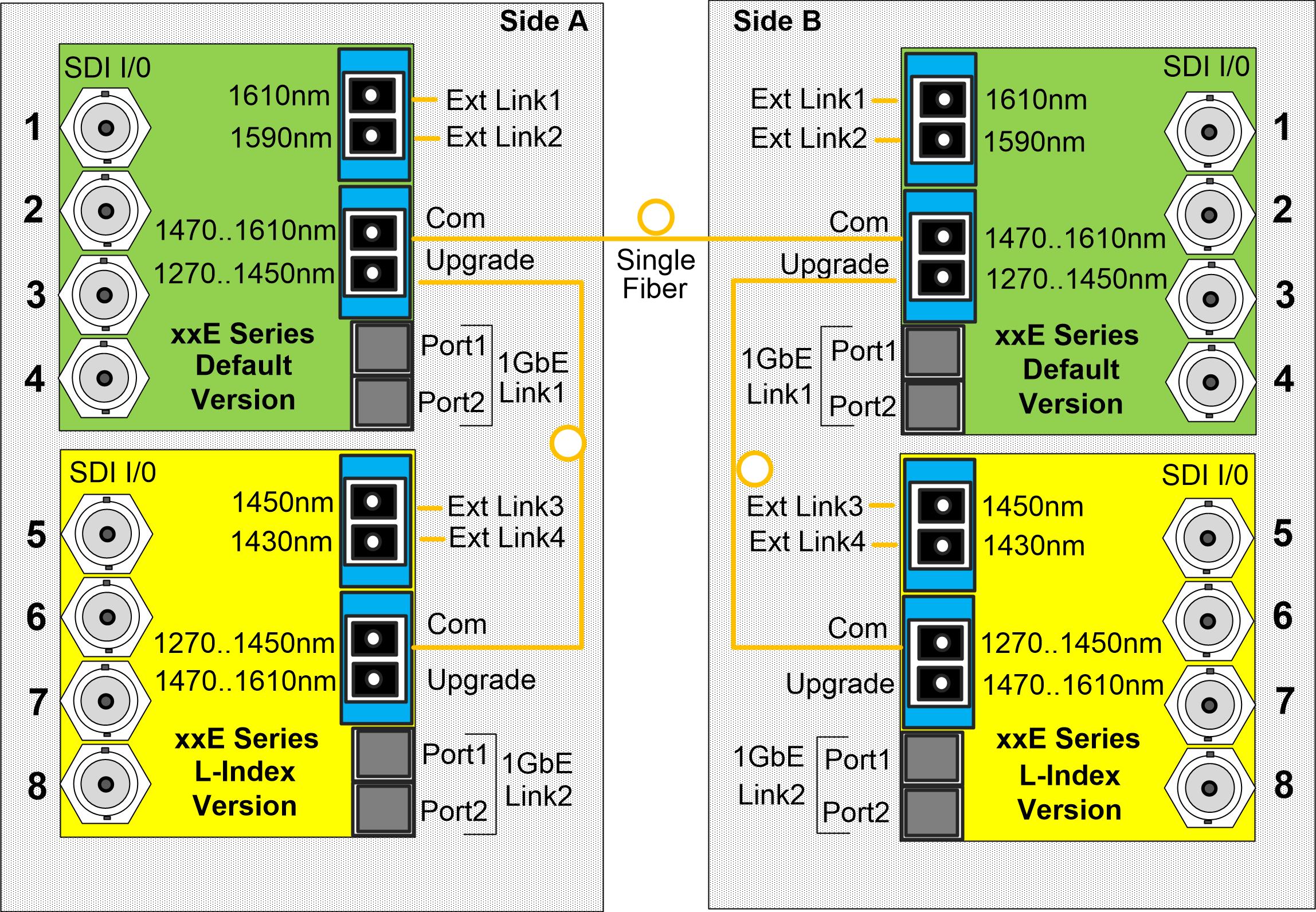

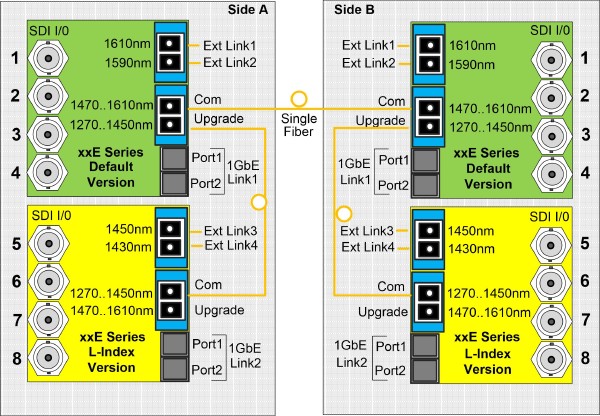

L: 1270..1410 nm version. Two units can be cascaded to transport 8 channels of video and two 100/1000 Ethernet links.
