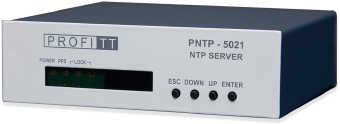

PNTP-5021
Compact NTP server and sync generator provides PPS and LTC reference signals
documents
PRODUCT OVERVIEW
Network Time Protocol server PNTP-5021 is a network frequency-time synchronization equipment and it can be used as Stratum 1 source.
Accurate timing accross your network. High stability OCXO for increased accuracy when unsynchronised. 1-pulse-per-second and 10 MHz outputs. Recieve time information from GNSS satellites anywhere on the surface of the Earth. Ideal for closed networks. Support for NTP and SNTP compatible clients. Web-based status and configuration interface. SNMP monitoring interface. Single board computer with Linux operating system.
- Generating 10 MHz reference signal
- Generating 1 PPS reference signal
- Generating linear timecode (LTC) signal according to EBU/SMPTE309M
- Functioning as NTP 1st level server Stratum 1 time stamp over Ethernet
- Functioning as PTP (precision time protocol) MASTER including for distributing clock reference signals in IP networks
- Autonomous operation driving by internal generator
APPLICATIONS
- Automated information-measuring systems
- Synchronizing computers and other devices connected to network via NTP
- Time reference in spatially distributed measuring systems
- Security systems, industrial control systems and other areas requiring time synchronization
- LAN/WAN/MAN time reference
TECH SPECIFICATIONS
- Internal receiver: GLONASS, GPS
- Internal generator: oven-controlled Crystal Oscillator (OCXO)
- Sync outputs: NTP server, PTP master, 1PPS, 10 MHz
- Power supply: 6..12V DC
10 MHz Output
- Form: Square Wave
- Signal level: 1V into 50 Ohm
- Allan variance per 1 s: less than ±1•10e-11
- Time instability per day without external synchronization: less than ±1•10 -9
1 PPS Output
- Accuracy, time locked: 110 ns reference to UTC
- Deviation per hour without external synchronization: less than 300 ns
- Signal level: 1V into 50 Ohm
Dimensions
- 145 x 153 x 43 mm
ORDERING CODES
| PNTP-5021 | Compact NTP server and sync generator |
