PBX-SDH-310 / PBX-HDS-311
PROBOX family two channels SDI to HDMI and HDMI to SDI converters.
PRODUCT OVERVIEW
PBX-SDH-310, PBX-HDS-311 and PBX-SHD-312 is a series of compact two channels 3G/HD/SD-SDI to HDMI and HDMI to 3G/HD/SD-SDI converters. Two independent channels provide high density connectivity.
- Up to 3G-SDI
- Two independent channels
- Multi-channel audio support
- Signal loss indication
- Automatic format detection
- Converting up to 8 channel of audio
TECH SPECIFICATIONS
Supported standards
- SD 625i/525i
- HD 1080i 50/59.94/60, 1080p 25/29.97/30/24/23.98, 720p 50/59.94/60
- 3G 1080p 50/59.94/60, Level A, 4:2:2

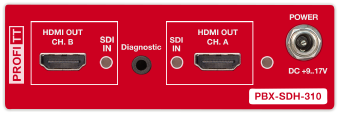

PBX-SDH-310, 2 Ch. SDI to HDMI ( Ports per Channel)
- 1 x BNC SDI input
- Cable equalization length up to 140m for 3G-SDI, up to 140m for HD-SDI, up to 400m for SD-SDI (Belden 1694a)
- 1 x BNC SDI Loop Output
- 1 x HDMI 1.4a output
PBX-HDS-311, 2 Ch. HDMI to SDI (Ports per Channel)
- 1 x HDMI 1.4a input
- Cable equalization length up to 10m for 3G-SDI
- 2 x BNC SDI outputs
PBX-SHD-312, SDI to HDMI & HDMI to SDI
- SDI to HDMI
- 1 x BNC SDI input
- Cable equalization length up to 140m for 3G-SDI, up to 140m for HD-SDI, up to 400m for SD-SDI (Belden 1694a)
- 1 x BNC SDI Loop Output
- 1 x HDMI 1.4a output
- HDMI to SDI
- 1 x HDMI 1.4a input
- Cable equalization length up to 10m for 3G-SDI
- 2 x BNC SDI outputs
Power
- +12V @ 1A DC adapter
- Power consumption 5W
- Power Supply +9..17.0V
Dimensions
- 100x105x33.5mm
ORDERING CODES
| PBX-SDH-310 | Two channel 3G/HD/SD-SDI to HDMI converter |
| PBX-HDS-311 | Two channel HDMI to 3G/HD/SD-SDI converter |
| PBX-SHD-312 | Bidirectional 3G/HD/SD-SDI to HDMI and HDMI to 3G/HD/SD-SDI converter |
