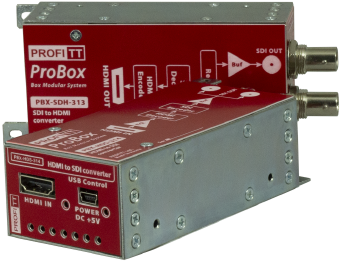

PBX-SDH-313 / PBX-HDS-314

PROBOX family miniature single-channel SDI to HDMI and HDMI to SDI converters.

PRODUCT OVERVIEW

PBX-SDH-313, PBX-HDS-314 are compact single-channel 3G/HD/SD-SDI to HDMI and HDMI to 3G/HD/SD-SDI converters. User-configurable audio groups (1/2 or 3/4) for transfer between SDI and HDMI. mini-USB (type B) port for configuration and power.

  • Up to 3G-SDI
  • Multi-channel audio support
  • Automatic format detection
  • Converting up to 8 channel of audio

TECH SPECIFICATIONS

Supported standards

  • SD 625i/525i
  • HD 1080i 50/59.94/60, 1080p 25/29.97/30/24/23.98, 720p 50/59.94/60
  • 3G 1080p 50/59.94/60, Level A, 4:2:2

PBX-HDS-313 HDMI to SDI converter

  • HDMI 1.4a input
  • Cable equalization length up to 10m for 3G-SDI
  • 2 x BNC SDI outputs

PBX-SHD-313, SDI to HDMI converter

  • 1 x BNC SDI input
  • Cable equalization length up to 140m for 3G-SDI, up to 140m for HD-SDI, up to 400m for SD-SDI (Belden 1694a)
  • 1 x BNC SDI Loop Output
  • 1 x HDMI 1.4a output

Power

  • +5V @ 1A DC adapter
  • mini-USB (type B) port

Dimensions

  • 103x52x33mm

ORDERING CODES

PBX-SDH-313 Single-channel 3G/HD/SD-SDI to HDMI converter
PBX-HDS-314 Single-channel HDMI to 3G/HD/SD-SDI converter
