PBX-SVC-710 / PBX-SVC-711
PROBOX family 4K SDI to HDMI2.0 and HDMI2.0 to 4K SDI converters
PRODUCT OVERVIEW

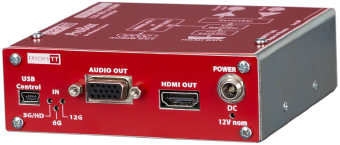

PBX-SVC-710 is a SDI to HDMI converter and PBX-SVC-711 is a HDMI to SDI converter.
- SD-SDI, HD-SDI, 3G-SDI, 6G-SDI and 12G SDI support
- Signal loss indication
- Automatic format detection
- Converting up to 8 channel of audio
- HDMI 2.0 interface
- USB port for configuration
- Compact design
TECH SPECIFICATIONS
Supported video standards
- HD 720p24/23.976, 720p25, 720p30/29.97, 720p/50, 720p60/59. 94, 1080p24/23.98, 1080p/25, 1080p30/29. 97, 1080i50, 1080i60/59. 94
- 3G 1080p 50/59.94/60, Level A, 4:2:2
- 12G 2160p24/23.976, 2160p25, 2160p30/29.97 2160p50, 2160p60/59.94
PBX-SVC-710 Ports (SDI to HDMI)
- 1 x BNC SDI In
- 1 x BNC SDI Loop Out
- 1 x HDMI Out
- Cable equalization (1694 coax)
- 12 Gbps, 50m
- 6 Gbps, 80m
- 3 Gbps, 120m
- 1.5 Gbps, 150m
PBX-SVC-711 Ports (HDMI to SDI)
- 1 x HDMI In
- 2 x BNC SDI Out
Dimensions
- 100x105x33.5mm
ORDERING CODES
| PBX-SVC-710 | 12G/6G/3G/HD-SDI to HDMI2.0 converter |
| PBX-SVC-711 | HDMI2.0 to 12G/6G/3G/HD-SDI converter |
